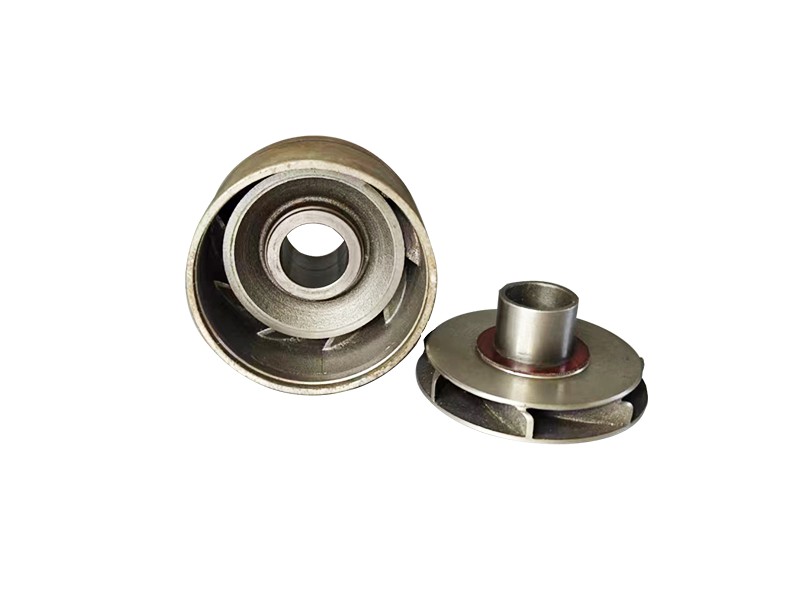

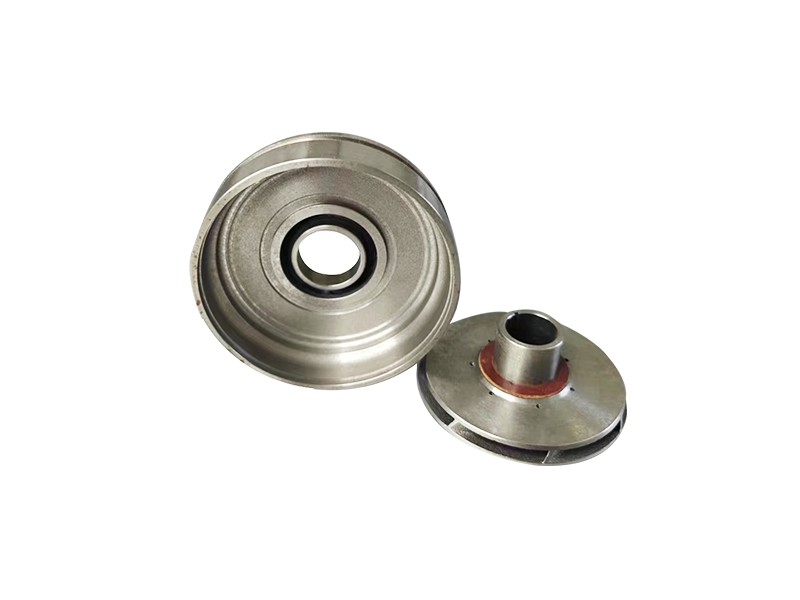

◆ Impeller and diffuser anti-corrosion coating: The surfaces and flow channels in contact with the well fluid are sprayed with Teflon coating, nickel plating, ceramic coating and other processes to improve the surface hardness and corrosion resistance.

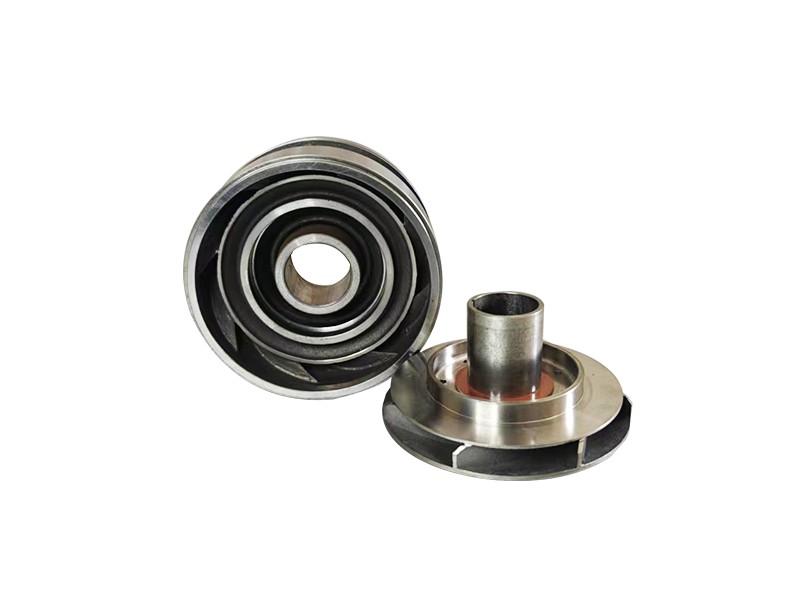

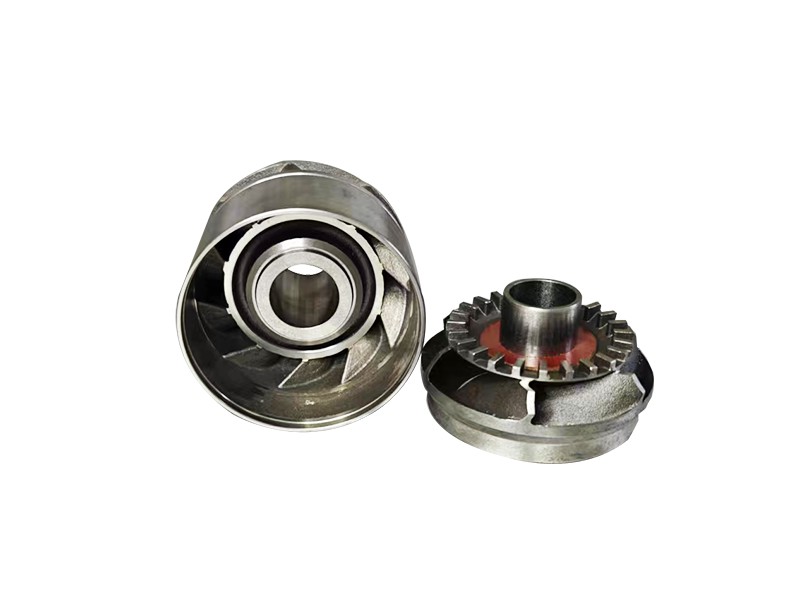

◆ Mixed-phase flow impeller series: The twisted blade design increases the relative velocity liquid flow angle, reduces liquid impact loss and improves the cavitation performance and working efficiency of the impeller.

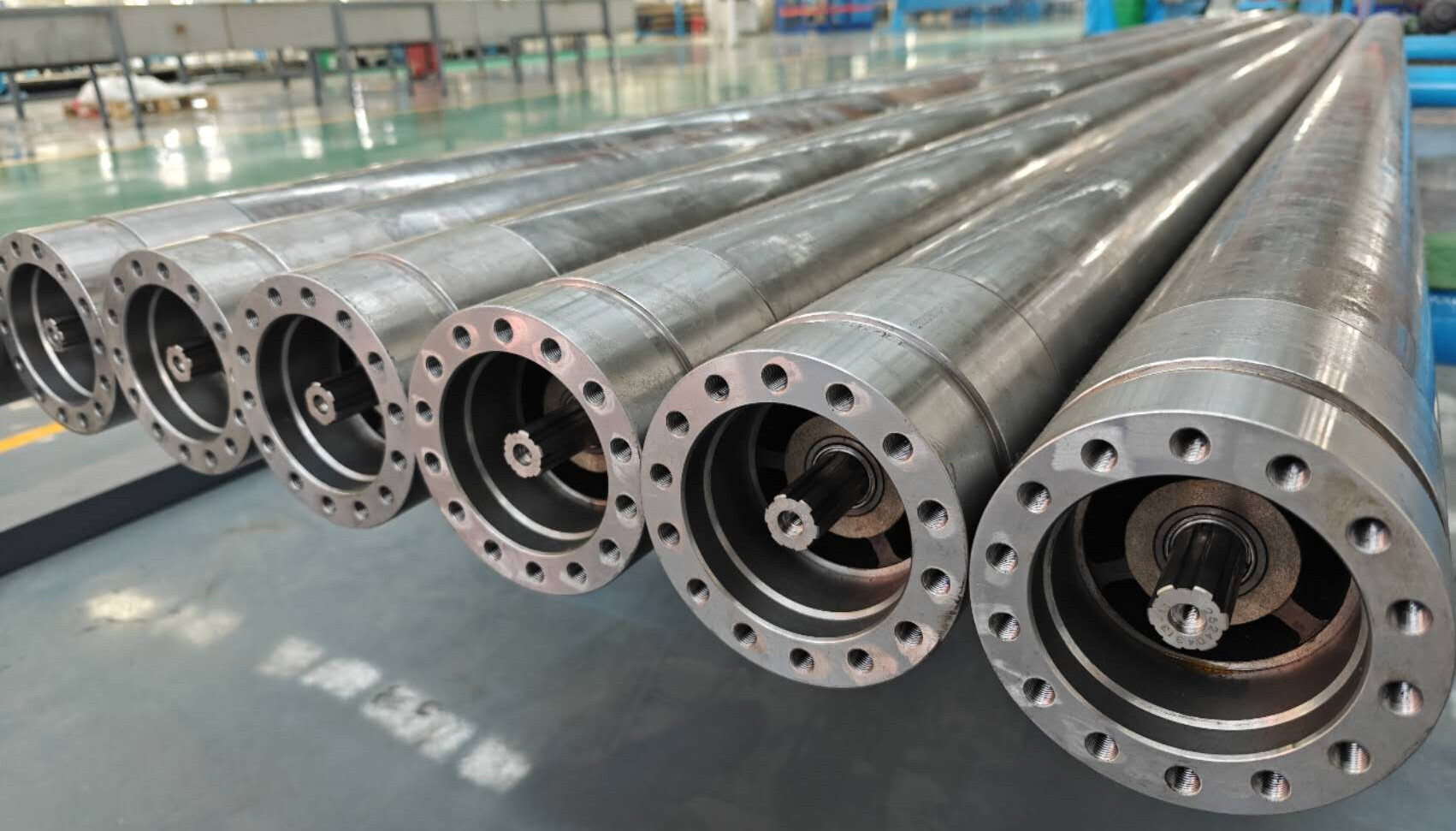

◆ Wide displacement range pump: The optimized mechanical structure design and material selection of HJESP wide displacement pump enable the centrifugal pump to operate in a wider displacement range, and its unique compression assembly form can correctly distribute the increased thrust. It has a higher initial production and faster flow rate decline than the natural flow, and is suitable for wells with gas-containing and abrasive environments, uncertain production capacity or sharp decline in production.

◆ Excessive solid particles in the ESP production process will accelerate pump wear, which may affect the operating life of the system.

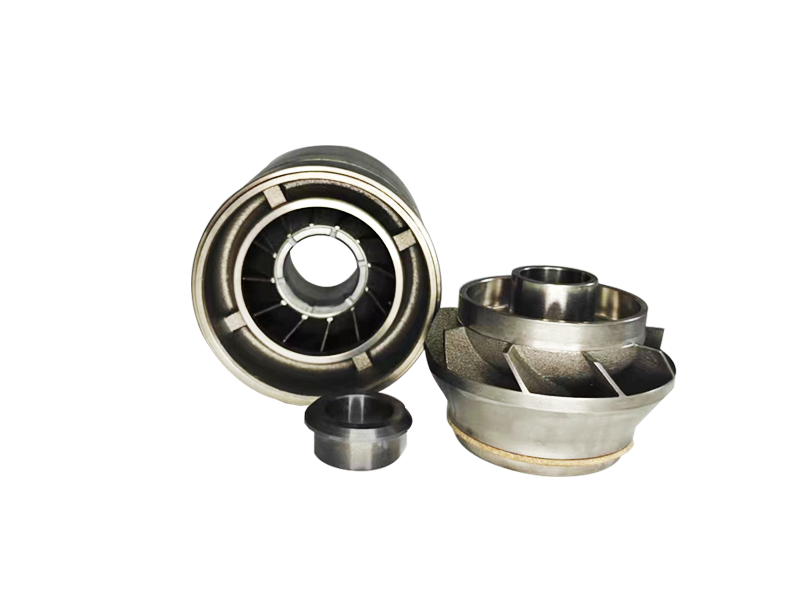

To provide advanced wear protection without sacrificing pump efficiency, HJESP offers Bidirectional Abrasion-Resistant Modular (BARM) pumps, which use rugged tungsten carbide bearings to enhance radial support in production wells with excessive solid particles or unstable fluid flow. In this design, the axial force of the centrifugal pump is borne by each small section of the Abrasion-Resistant Modular, so the thrust load of the impeller is not transmitted to the protector and motor section of the ESP, thereby improving the total thrust load capacity of the ESP and allowing higher head design. In addition, these "T" bearing sets have a uniquely shaped groove design that has been proven to allow solids to flow fully through and around the sleeves and bushings;This prevents problems such as accelerated wear and heat accumulation associated with sand accumulation in these spaces.
